Shrink wrapping

Horizontal Stretch wrapping FW Horizontal stretch-film wrapper

Horizontal Stretch wrapping FW

Meypack’s FW Series case packers use ultra-thin stretch film, no compressed air needed. They wrap products efficiently, with precise servo cutting and optional laser perforation for easy opening, handling up to 60 packs/min. Ideal for frozen foods and more.

read more
Horizontal Stretch wrapping FW
Erecting, stacking, and grouping of lying and standing products
Continuous wrapping with pre-stretched film
continuously operating cutting system featuring a thermal knife
High Speed up to 60 packs per minute

product benefits

No Compressed Air Needed
Ultra-Thin Stretch Film
Precise Servo Cutting
Easy opening
Versatile Integration with wrap around packer

Details

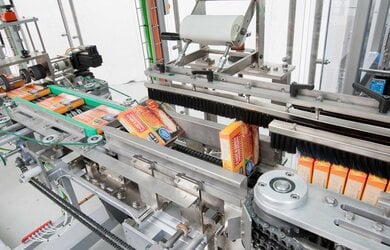

Product infeed spoon chain
Product infeed spoon chain

Arriving products, typically in cartons, arrive laying down from the cartoning machine and are erected into an upright position using a servo driven paddle chain system. Here the products are counted and collated into the required number for the pack

Product wrapping without heat
Product wrapping without heat

The film rolls, which are positioned opposite each other, can achieve an output of up to 60 film packs per minute.

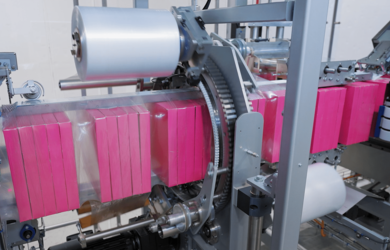

Easy Film Roll Change
Easy Film Roll Change

Facilitates quick and efficient film roll replacement, minimizing downtime and maintaining continuous operation.

Adjustable Film Tension
Adjustable Film Tension

Allows customization of the stretch ratio to ensure the film fits tightly around products, optimizing stability and protection during transport.

overview

The Meypack stretch-film technology is particularly appropriate when the customer’s priority is packaging for transport.

The FW Series stretch-film wrappers use very thin film. Without any external use of energy, which is otherwise necessary in the shrink wrapping process in the shrink tunnel, the film is wrapped two to three times around the product formation. In this way, the pre-stretched film (with an adjustable stretch ratio) is fitted very tightly around the products to be packed, creating a highly stable pack. An electrically heated servo-driven film cutting device separates the packs in a very clean and defined manner.

To be able to quickly remove the film easily at the point of sale without the need for additional tools, the machine can be equipped with a laser perforation system – the so-called “Easy Opening System” – which creates a tearoff strip of film. The FW Series is available for speeds of up to 60 cycles per minute.

Meypack FW 200

option & data sheet

Laser Perforation

Integrates a laser system to create precise perforations, enabling easy and tool-free access to packages, enhancing convenience for end-users.

Bio-Based Film Compatibility

Supports the use of eco-friendly bio-based films, promoting sustainability while maintaining high packaging performance.
